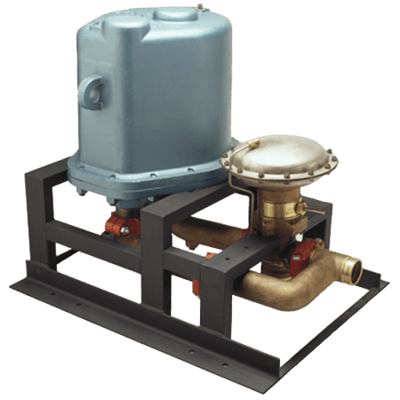

Leslie Constantemp Feedforward Steam Water Heaters

Brand: Armstrong International

Leslie Constantemp heaters use a tightly-coiled circulating exchanger to transfer heat energy from the isolated steam flow to the desired liquid.

These systems can take advantage of very low steam pressures and can deliver liquids at precisely defined temperatures.

Leslie Constantemp steam heaters are available in Inlet pressure ranges: 2-15 psig. Heating is instant on demand with capacities up to 7,200 gallons per hour.

Temperature variation is a maximum of ±3°F. The standard coil material is copper but Admiralty and cupro-nickel coils are available as special-service options.

The heart of the Leslie Constantemp steam water heater is the feedforward blending device.

The hot and cold water blend ratio is accurately proportioned to maintain the set temperature for all flow demands.

Water is blended instantly; automatically; with virtually no lag in response time.
Features
  • Single or Double Wall Exchanger
  • Accuracy ± 3°F
  • Feed-Forward Control
  • Flows up to 120 GPM
  • Adjustable Temperature 105°F - 180°F
  • No Storage Tank Required
  • Built In Safety
  • Heats Water Only on Demand
  • Fits Through Standard Doorways
  • 10 year Coil and Pressure Vessel Warranty

Models matching criteria: 8
Leslie Constantemp Feedforward Steam Water Heaters
Call for Pricing & Availablility
Does not ship to VA, United States
Leslie Constantemp Feedforward Steam Water Heaters
Call for Pricing & Availablility
Does not ship to VA, United States
Leslie Constantemp Feedforward Steam Water Heaters
Call for Pricing & Availablility
Does not ship to VA, United States
Leslie Constantemp Feedforward Steam Water Heaters
Call for Pricing & Availablility
Does not ship to VA, United States
Leslie Constantemp Feedforward Steam Water Heaters
Call for Pricing & Availablility
Does not ship to VA, United States
Leslie Constantemp Feedforward Steam Water Heaters
Call for Pricing & Availablility
Does not ship to VA, United States
Leslie Constantemp Feedforward Steam Water Heaters
Call for Pricing & Availablility
Does not ship to VA, United States
Leslie Constantemp Feedforward Steam Water Heaters
Call for Pricing & Availablility
Does not ship to VA, United States

Specifications

Exchanger Material

  • Ductile Iron (75 psi)
  • Cast Steel (150 psi)

Blending Valve Material

  • Body: Bronze
  • Plug: Hastalloy
  • Coils: Copper Standard
  • Options: Cupro-Nickel, Admiralty, Stainless Steel

Design - Adjustable Temperature Range

  • 45-120 GPM: 105°F - 180°F (41°C - 82°C)
  • 15 and 30 GPM: 105°F - 150°F (41°C - 65°C)

Design - Steam Pressure

  • 2-250 PSIG over 15 PSIG

Design - Water Pressure

  • 150 PSI MAX

Temperature

  • 45-120 GPM: 105°F - 180°F (41°C - 82°C)
  • 15 and 30 GPM: 105°F - 150°F (41°C - 65°C)

Pressure

  • Steam: 2 - 250 PSIG over 15 PSIG
  • Water: 150 PSI Max

Capacity

  • Flow Ranges: 15 - 120 GPM (57 - 454 L/min)

Options

  • Pressure Gradient Monitor
  • Skidded
  • Recirculation Kit
  • Insulated Cover

Certifications, Standards, & Approvals

  • Safe Water Drinking Act Compliant; NSF 61 and NSF/ANSI 62

  • Hospital Patient & Domestic Hot Water
  • University Dormitories
  • Safety Shower Systems Industrial Shower Rooms
  • Booster Heater
  • Building Heat
show more
