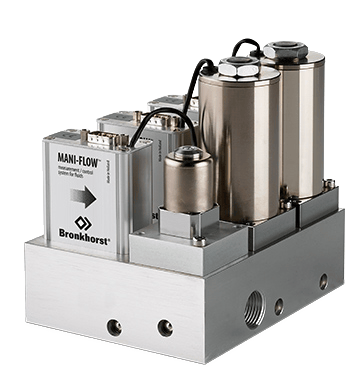

MANI-FLOW Flow & Pressure Manifold
Brand: BronkhorstThe MANI-FLOW series originate from the demand of some customers (Original Equipment Manufacturers or OEM’s) to design an economical solution that combines various functions into one compact device.
Since 1996 a large variety of solutions has been designed and manufactured.
On a compact manifold one or more mass flow or pressure sensor modules can be combined with control valves, two- or three-way valves, shut-off valves, filters or any other functional module as per customer’s request.
Features- Compact assembly ensures space efficiency
- Combination of functions on one manifold (i.e. Tubeless construction) reduces potential leak points
- Modular construction enables easy exchange of functional modules
- Pre-tested “Plug and Play” units, reducing custom testing requirements
Specifications
Brand
Actuator Type
- 2-Way Valves
- 3-Way Valves
Applications
- Analytical Applications
- Biotechnology & Chemical Installations
- Food & Beverage
- Industrial Processes
- Medical
- Pharmaceuticals
- Semiconductor & Electronics Industry
Approvals & Certifications
- ISO 9001, 14001
Flow Capacity
- 1.0 Kv
Flow Rate
- 5 to 50,000 mL/min
Materials of Construction
- Aluminum
- Stainless Steel
Pressure Range
- psi: 0 to 145 (kPa: 0 to 1,000, bar: 0 to 10)
Pressure Type
- Absolute
- Gauge
